GEOTEXTILE / GEOSYNTHETICS TESTING INSTRUMENTS

Meets: - ASTM D-4833

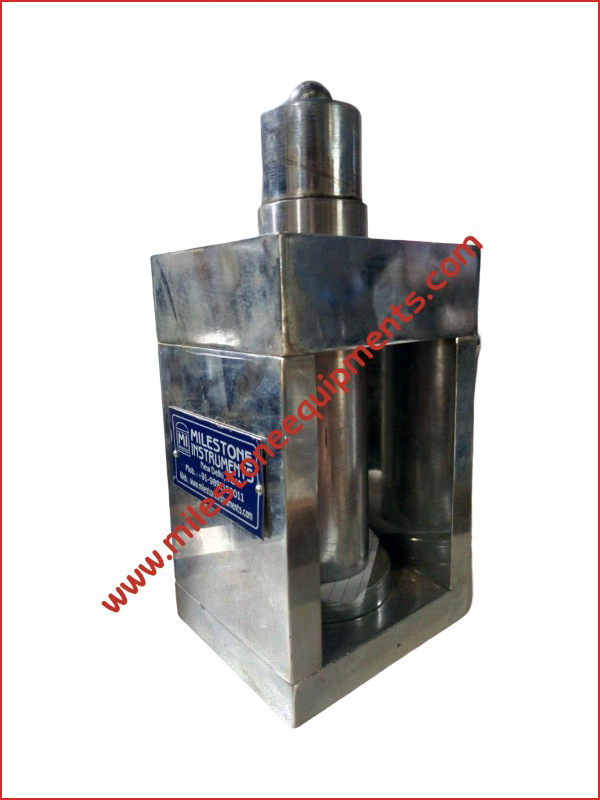

The geotextile specimen is clamped to obtain an inside dia of 44.45 mm and force is applied through an 8 mm dia plunger till failure. The puncture strength so obtained is felt to reflect the fabric's ability to withstand aggregate penetration.

Meets: - ASTM D-3787
The geotextile specimen is clamped to obtain an inside diameter of 44.45 mm and force is applied through steel ball having 25 mm diameter at the rate of 305 mm/min and continue at that speed until the specimen bursts. Record to the nearest 0.5 N the ball-bursting strength of the specimen.

Meets: - EN ISO 12956:199
The percentage passing of different fractions determines the porometry of the geotextile investigated. In the Hydrodynamic Sieving Method, the geotextile specimen, loaded with a certain quantity of glass bead fraction, is continuously rotated in a water trough, forcing the glass beads to pass through the geotextile openings. Glass beads to be ordered separately

Meets:-ASTM-D 4886-91, IS-14714, EN ISO 13427:199

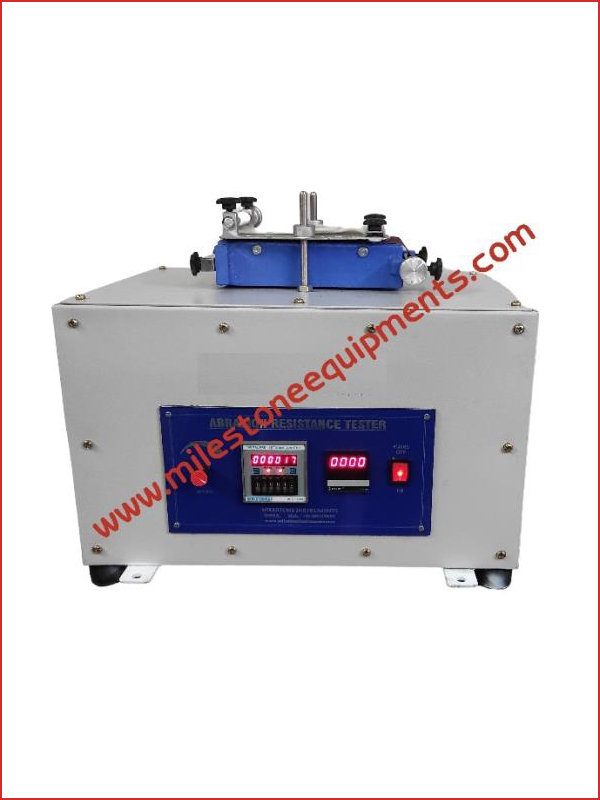

This test method covers the determination of resistance of geotextiles to abrasion using an abrasion tester. This test method at this point has only been evaluated for geotextiles- not geomembranes, grids, etc. Therefore, the test method is designated for geotextiles, not geosynthetics, as all products may not lend themselves to this test method for abrasion. If later developments indicate a wider scope for this test method, appropriate changes will be made. The assembly should be two parallel, smooth plates, one of which makes a reciprocating motion. The speed of the reciprocating plate should be adjustable between 10 and 115 double strokes per minute. The stroke length should be 25 mm (1 in.). The second plate is rigidly supported by a double-lever assembly to provide free movement in a direction perpendicular to the reciprocating plate. This plate is stationary during the test and must be well balanced so that a vertical load can be maintained by means of dead weights. Both plates are equipped with clamps at each end to hold the test sample and the abrading medium. The clamps have gripping surfaces adequate to prevent slippage of the specimen or the abrading material during the test.

Meets :- IS-16653

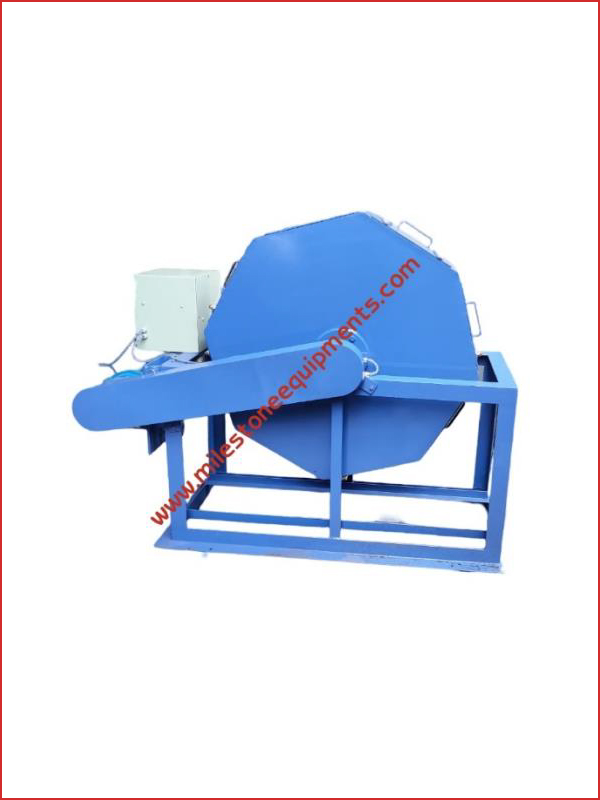

The test method simulates abrasion load on geo material. A mixture of stone chipping and water passes over geo material beg sample fixed in rotating drum.

• Test Sample size 280x170 mm
• Drum Size 980 mm octagonal.
• With Digital revolution controller (At 5000±5 revolution revering type) with revolution counter (Variation of 20 revolution at 40000 count)
• AC drive
• Branded Gear box with 1 HP 3 phase motor.
• Power transmission by Chain and pulley.
• Sample trolley type Tray.
• Voltage requirement 220 volts 50 HZ 1 phase
