GEOTEXTILE / GEOSYNTHETICS TESTING INSTRUMENTS

Meets: - ASTM- D 5199, EN - ISO -9863-1, IS-13162-3, ASTM - D 1777

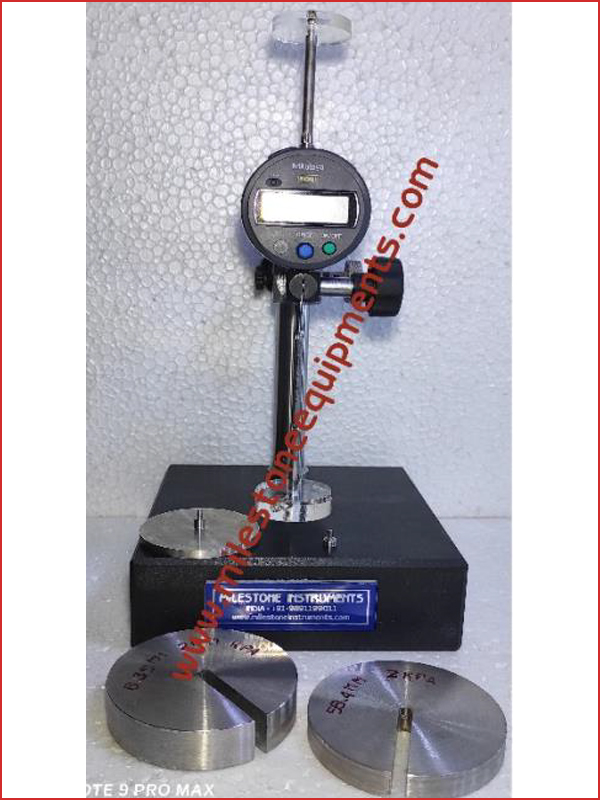

This is used for measuring the thickness of the Geo-textile, Geo-membrane and many more. The thickness of the material can be measured with an accuracy of 0.001 mm (depend on the dial gauge accuracy) for thickness up to 10 mm with Foot pressure of 6.35 mm, 10 mm and 56.4 mm diameter. Dead weight mechanism is provided to apply desired pressure varying from 2, 20 to 200 kPa. Surface plate is grounded and is rust free to enable reproducible results.

• Table top Modal
• Range 0-12.5 mm (Depend on Dial Gauge accuracy)
• Supplied with Mitutoyo Dial Gauge
• Least count up to 0.001 mm
• Dead Weight Type
• Easy to operated
• Foot pressure Change able
• Granite Base.
• Two Adjustment mode
• All material made with Steel less Steel (304)
• Flatness up to 0.01 mm
• Adjustable height
• Used to measure all material like Geo-textile, Geo-membrane and many more

Specification

Note :- While Placing the order please mention your requirement we also have other test criteria.

Meets: - ASTM- D 5199, EN - ISO -9863-1, IS-13162-3,

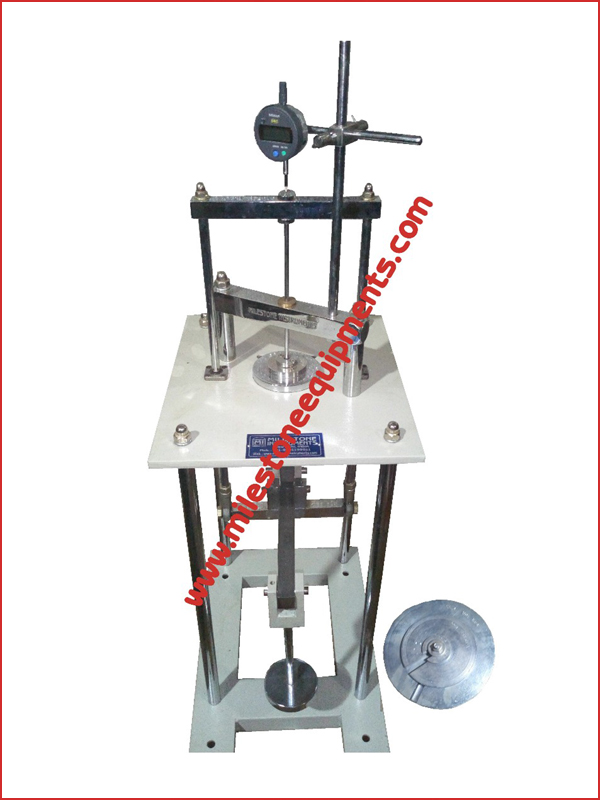

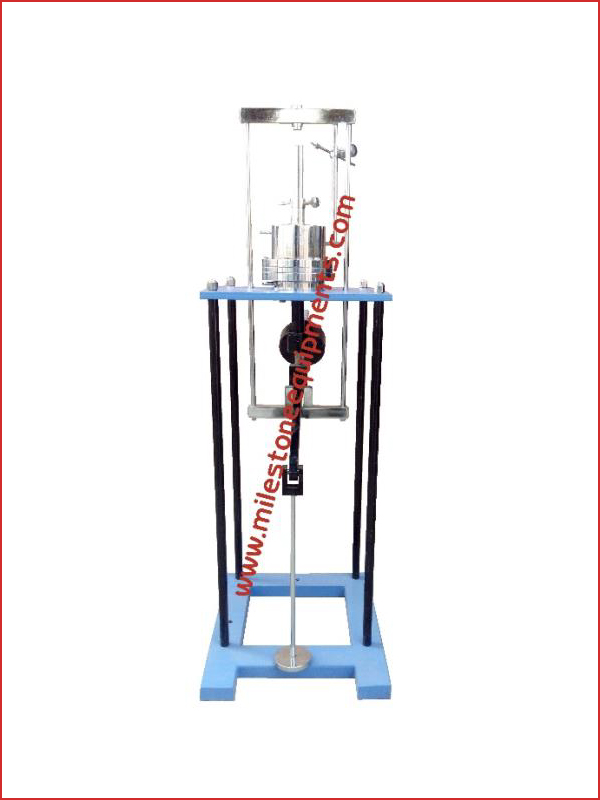

This is used for measuring the thickness of the Geo-textile, Geo-membrane and many more. The thickness of the material can be measured with an accuracy of 0.01 mm (depend on the dial gauge accuracy) for thickness up to 10 mm with Foot pressure of 56.4 mm diameter. Dead weight mechanism is provided to apply desired pressure varying from 2, 20 to 200 kPa. Surface plate is grounded and is rust free to enable reproducible results.

• On Floor Modal
• Range 0-12.5 mm (Depend on Dial Gauge accuracy)
• Supplied with Mitutoyo Dial Gauge
• Least count up to 0.01 mm
• Lever Ration Dead Weight Type
• Easy to operated
• Foot pressure Change able
• SS Foot pressure Base
• Adjustable height
• Used to measure all material like Geo-textile, Geo-membrane and many more

Specification

Note :- While Placing the order please mention your requirement, we also have other test criteria.

Meets: - EN-ISO-13433-2006, BS6906: Part 6

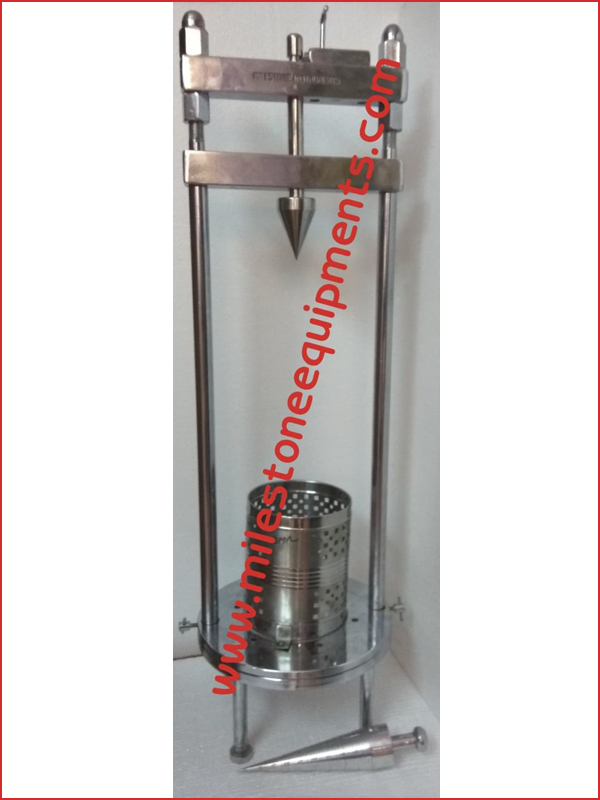

Method to determine the resistance of geosynthetics to penetration by steel cone dropped from a fixed height, as a simulation of dropping sharp stones on their surface. Generally applicable to all geosynthetics. However, the test principle may not be applicable to some types of products. The specimen is clamped between two steel rings. A steel cone (45° tip angle, 1000 g) is dropped from a height of 500 mm onto the centre of the specimen. The degree of penetration is measured by insertion of a graduated cone into the hole.

Note: - Electrically cone release facility also available

• On Floor Modal
• Mechanical operated (Electrical release modal also available)
• Sample Size 150 mm (Test able)
• Total Drop height 500 mm ( ± 5 mm Adjustable as per sample thickness)
• Drop cone
  1. Made of SS material (304)
  2. Weight 1000 gram
  3. Angle 45° tip angle
  4. Having rounded tip
• Measuring cone
  1. Aluminum materials
  2. Total weight 600 gram
  3. Having marking of 1 mm interval for better result

Permeability of a geotextile must be substantially greater than that of the protected soil, so that water can pass freely from the soil through the fabric without build up of hydro static pressure. A high value of the permeability of the geotextile also infers that partial clogging will not reduce the permeability. The constant head test is carried out using a head of 50 mm of water.

Essential Accessories

• Overhead Tank
• Loading unit, 300-kPa capacity
• Cross Permeability Apparatus

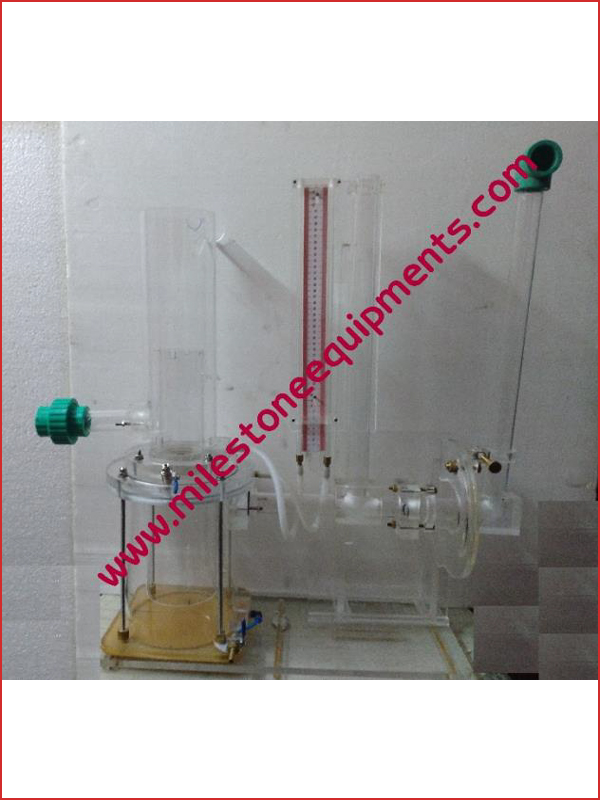

These test methods cover procedures for determining the hydraulic conductivity (water permeability) of geotextiles in terms of permittivity under standard testing conditions, in the uncompressed state. Included are two procedures: the constant head method and the falling head method.

In Constant Head Test:- A head of 50 mm water is maintained on the geo textile throughout the test. The quantity of flow is measured versus time. The constant head test is used when the flow rate of water through the geotextile is so large that it is difficult to obtain readings of head change versus time in the falling head test.

In Falling Head Test:- A column of water is allowed to flow through the geo textile and reading of head changes versus time is taken. The flow rate of water through the geo textile shall be slow enough to obtain accurate readings.

Sample Size: - 50 mm
Head can be maintain of the sample : up to 40 cm
Suitable for both type of test :- Constant Head and Falling Head.
Meets: - ASTM- D 4491 – 99a, IS-14324, EN ISO 11058

These test methods cover procedures for determining the hydraulic conductivity (water permeability) of Geotextile under standard testing conditions, in the uncompressed state. The system analyzes the rate of water flow through the specimen as a function by means of a two cylinder- system.

Measurement results are presented on the scale numerically, which is the velocity at a hydraulic height difference of 50 mm.

Meets: - BS EN ISO -11058

Specification:-

Technical Information

• Measuring principle: method of vertical flow (without application of load).
• Tested diameter of sample: 50mm.
• Sample diameter: 72mm.
• Thickness of sample: 0,1-8mm.
• Consumption of energy: 220V AC, 50HZ.
• Comes with 500 ml measuring container.

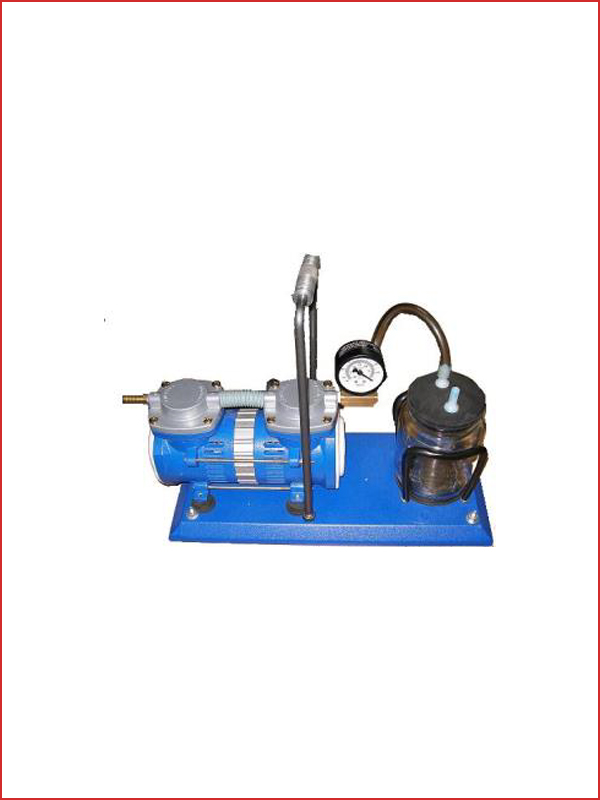

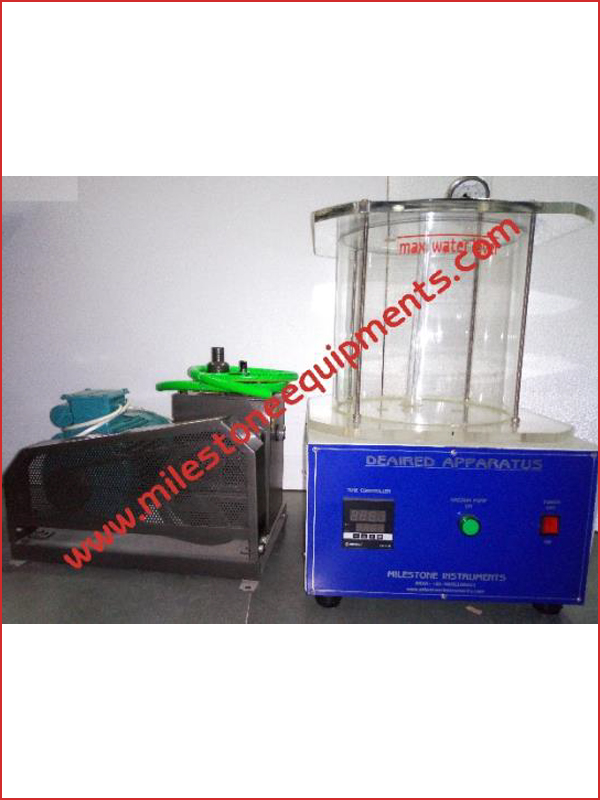

De-Aired tank is designed to remove dissolved gasses from ordinary clean water. The apparatus consists of a closed cylinder with hose attached to vacuum pump provided, which is controlled by PID controller.

Meets :- ASTM D 4491

Capacity : -20 liter

This is used for removing the air bubble which is on the sample while filling the water on the tank.
