Used to determine the resistance to shearing of all
types of soil specimens both consolidated and drained, undisturbed or
remolded samples.
Meets:- IS: 2720 (Part 13), ASTM D 3080, IS: 2720 (Section 1 - Part
39),IS: 11593-1986, IS: 11229 - 1985, 2720 (Part 13) - 1986
Milestone Equipments offers the following models:

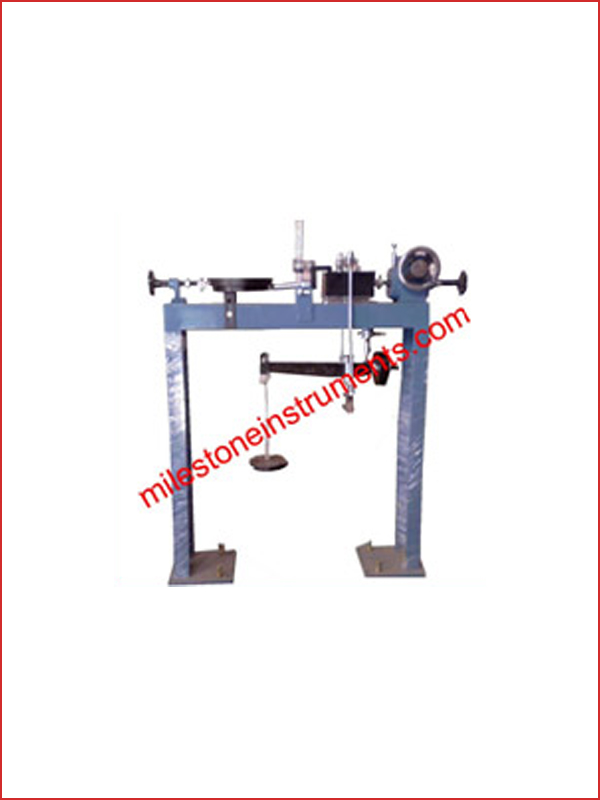

- 1. Direct Shear apparatus, 2 KN Manual
Specimen Size: 60 x 60 x 25 mm
- Direct Shear apparatus, 2 KN Motorised
Rates of Strain (mm/min): 1.25,
Specimen Size: 60 x 60 x 25 mm
Power Specifications: 230 V, 50 Hz, Single Phase, AC supply
- Direct Shear apparatus, 2 KN, Motorised with Digital Readout
Read Out: Digital
Rates of Strain (mm/min): 1.25
Specimen Size: 60 x 60 x 25 mm
Power Specifications: 230 V, 50 Hz, Single Phase, AC supply
- Direct Shear apparatus, 2 KN
Type of Shear Measurement: Direct/Residual Operation: By stepper motor
Rates of Strain: 0.00001 to 9.99999 mm/min
Specimen Size: 60 x 60 x 25 mm
Digital Display: Displacement and Speed with 0.00001 mm resolution
Provided RS232 for PC connection
Max vertical direct load: 3 kg/cm2
Power Specifications: 230 V, 50 Hz, Single Phase, AC supply
- Pneumatic Direct Shear apparatus, 2KN
Direct/Residual Shear Apparatus utilizes the pneumatic loading concept
for applying the vertical load to the sample. It eliminates the need of
loading weights used in dead weight-type systems. Type of Shear
Measurement: Direct/Residual Operation: By stepper motor Vertical Load
is applied by the pneumatic loading concept.
Rates of Strain: 0.00001 to 9.99999 mm/min
Specimen Size: 60 x 60 x 25 mm
Digital Display: Displacement and Speed with 0.00001 mm resolution
Provided RS232 for PC connection
Max vertical direct load: 3 kg/cm2
Power Specifications: 230 V, 50 Hz, Single Phase, AC supply

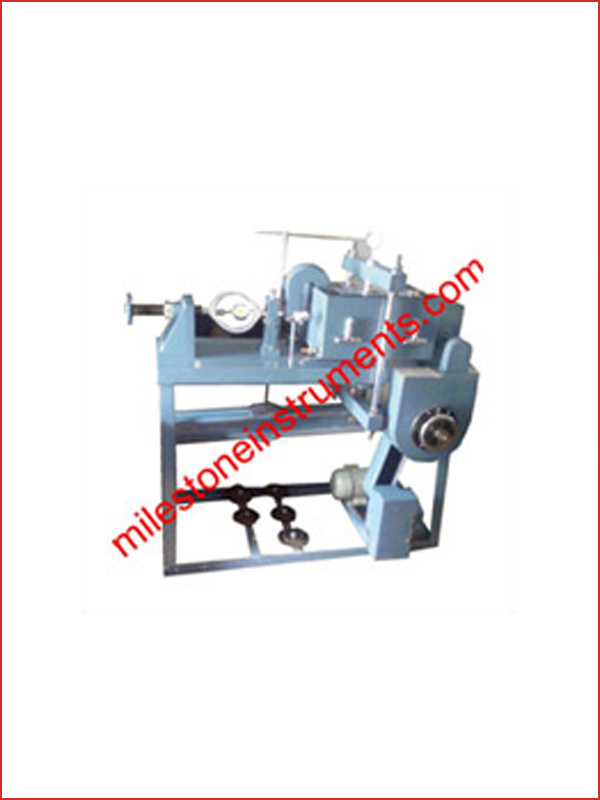

- Large Direct Shear Apparatus, Motorised, 30 kN (3,000 kgf)
For testing sands, gravel, gravely clays and clay gravels for use in
rolled fill embankments.
Type of Shear Measurement:
- Rates of Strain (mm/min): 72 speeds Ranging from 0.0014 to
10.16mm/min
- Specimen Size: 30 x 30 x 15 cm
- Change gears: 12
- Horizontal Load capacity: 30 kN
- Vertical load capacity: 300 kN/m2
Power supply:- 220 V, 50 Hz, 1 phase, AC supply
- Large Direct Shear Apparatus, Motorised, 50 KN (5,000 kgf)
For testing sands, gravel, gravely clays and clay gravels for use in
rolled fill embankments.
Type of Shear Measurement:
- Direct Operation: Motorised
- Rates of Strain (mm/min): 72 speeds Ranging from 0.0014 to
10.16mm/min
- Specimen Size: 30 x 30 x 15 cm
- Change gears: 12
- Shear Load capacity: 50 kN
- Vertical load capacity: 500 kN/m2
- Net weight: 990 kg
- Power Specifications: 220 V, 50 Hz, 1 phase, AC supply
Meets: - IS: 2720 (Section 1 - Part 39), IS: 11593-1986
