GEOTEXTILE / GEOSYNTHETICS TESTING INSTRUMENTS

This test is necessary for drainage application. The permeameters can be of parallel flow or radial flow type. In either case, flow occurs along the plane of the permeamatre. In the apparatus, flow occurs radically outwards, from a central hole to the periphery of a circular specimen. The transmissivity is defined as the volumetric rate of flow per unit width of geotextile and unit hydraulic head.

Essential Accessories

• Overhead Tank
• Loading unit, 300 kPa capacity

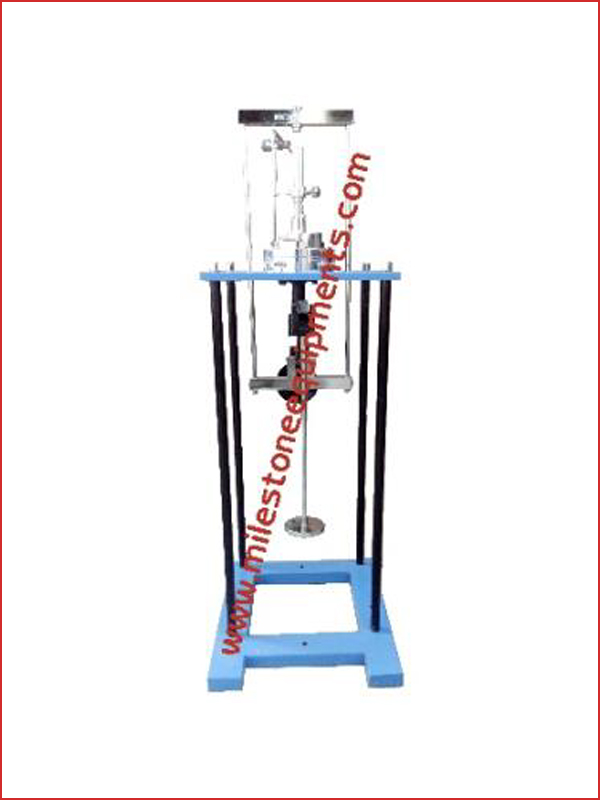

Meets: - ASTM- D 5199, EN-ISO-9863-1, IS-13162-3

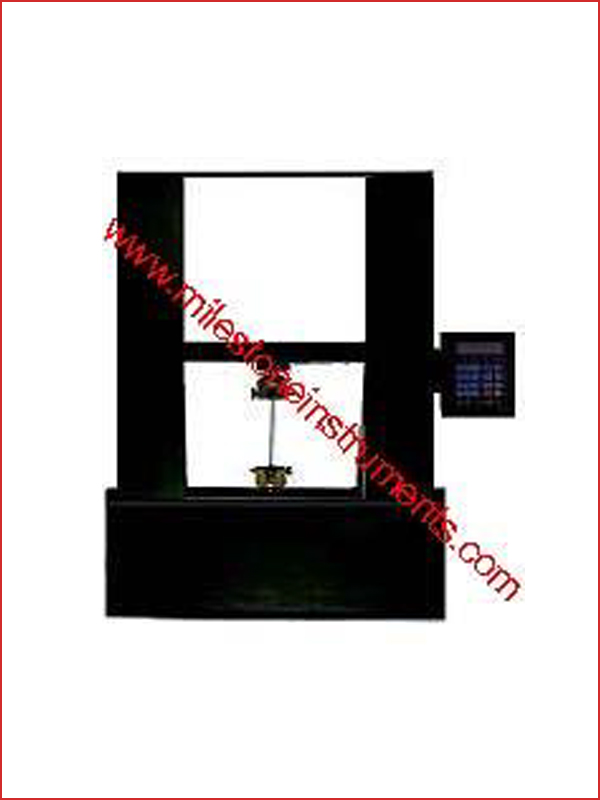

The Universal Testing Machine is designed to carry out various tests on Geotextiles viz. Narrow & wide Tensile Strength, Trapezoidal Tearing Strength, CBR Push through, Puncture Strength etc. The machine gives a choice of seven constant rates of travel of the lead screw ranging from a maximum of 320mm/min to a minimum of 5mm/min. The capacity of the machine is 100kN (10000kgf).It is provided with two no of load cell 100 KN and 10 KN

Meets: - ASTM- D 5199, EN-ISO-9863-1, IS-13162-3
The unit is Digital Microprocessor control and speed regulating by servo controlled motor and the speed can be from 5 mm to 500 mm. This frame also be use with CBR test on soil, Marshall stability test on Bitumen and many more tests where speed required is with in the limit and maximum load is below 100 KN,

Note: - Additional software is also available viewing the test on excel format.

Meets: - ASTM D 4595-86, ISO 10319:2008, IS-13162 Part -5
Two clamping systems 8 cm wide and 22.5 cm wide are mechanical wedge type and facilitate conducting Narrow Strip and Wide Width Tensile Strength tests as per many international specifications. These grips allow simple and rapid sample loading. Roller type grips required in high strength geotextile testing can be supplied as optional extra.

Meets: - ASTM D-4632,
This test measures the ability of the geotextile to distribute concentrated loads. Specially devised clamps (25 mm wide) with a gauge length of 100 mm are placed across 200 mm square samples or 200 mm x100 mm samples. The sample is then subjected to tension at a specified rate until failure occurs. It is widely used by manufacturers as a quality control tool and as such is the most commonly reported tensile strength value. It can also be used for relative comparisons between geotextiles of the same type.

Meets: - ASTM D 4533, IS-14293
Geotextiles can be cut or punctured during field installation, which can create a possible condition by which strength is controlled by a tearing resistance. An outline of an isosceles trapezoid is marked on a rectangular specimen (150 mm x 75 mm) cut for the determination of tearing strength, (with a 6 to 9 mm cut) and the nonparallel sides of the trapezoid marked on the specimen are clamped in parallel jaws of the Tensile Testing System.

Meets: - ASTM D- 6241, BS-6906 part 4, ISO-12236:2006
Fabric is clamped to give an inner diameter of 15 cm and a 50 mm CBR plunger is pushed centrally through a fabric at a specified rate. The load at failure is the push through load and when divided by the cross-sectional area of the plunger, gives CBR push through resistance.
